Available Series
2 Series Available
Select a series to view detailed specifications, dimensional drawings, and ordering information.
UHPGAG-01

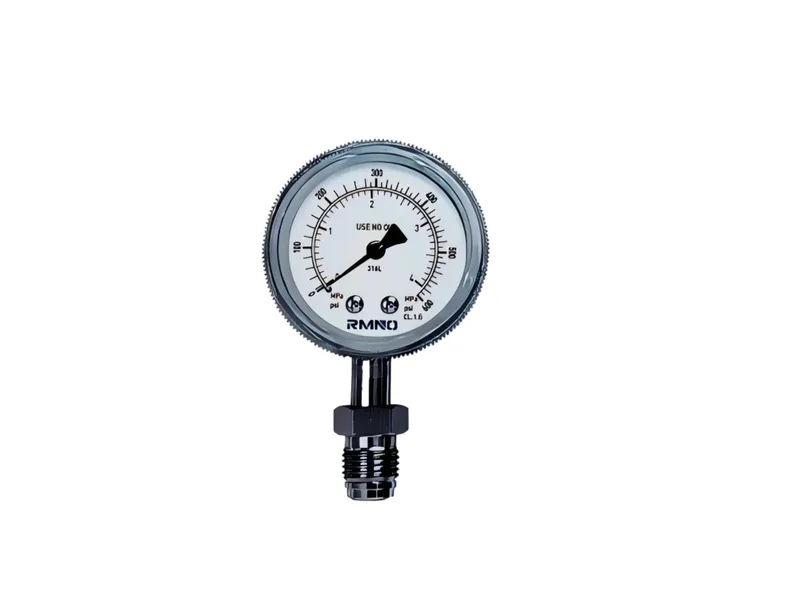

UHP20 Series UHP VCR Pressure Gauge
40mm and 50mm dial UHP VCR pressure gauge, cleanroom manufactured, plus or minus 1.6% FS, -0.1 to 40 MPa.
Dial size
40mm and 50mm
Pressure range
-0.1 to 40 MPa (-14.5 to 6000 psi)
Accuracy (40mm)
plus or minus 2.5% FS at 25 deg C
View & configure �?
UHPGAG-02
UHP28 Series Compact UHP Pressure Gauge
28mm compact UHP pressure gauge for space-constrained gas panel installations, C-seal and W-seal interface.
Dial size
28mm
Pressure range
-30 in.Hg/30PSI to -30 in.Hg/100PSI
Accuracy
plus or minus 3% FS at 25 deg C
View & configure �?
Applications
- Gas panel pressure indication
- Cylinder bank monitoring
- Regulator outlet display
- Process line pressure monitoring
Gas Service
All UHP inert and process gases
