Key Advantages
- Metal-to-metal seal for vacuum to high pressure
- Test port on nut for easy leak checking
- Silver-plated internal threads to prevent galling
- EP surface finish: 5 μm (0.13 μm) standard, 10 μm (0.25 μm) optional
- Permanent traceability marking on each fitting
- Gaskets: 316L SS, nickel, copper (silver-plated optional)
- Helium leak rate: ≥×10?atmcc/s with silver-plated or nickel gasket
Construction Material
| Parts | Material |
|---|---|
| Body & gland | 316 SS / 316L SS / 316L VAR SS |
| Gasket | 316L SS / Nickel / Copper |
| Male nut | 316 SS (silver-plated internal) |
| Female nut | 316 SS (silver-plated) |
Technical Specifications
Type
Metal face-seal
Body material
316L SS / 316L VIM-VAR
Surface finish (UHP)
Ra ≥.13 μm EP
Surface finish (HP)
Ra ≥.25 μm EP
Surface finish (GP)
Ra ≥.4 μm mechanical
He leak rate
≥×10?atmcc/s (installed)
Max pressure
3000 PSI / 207 bar (sizeependent)
Operating temperature
-00 to 450 °C (316L gasket) / -0 to 315 °C (Ni gasket)
Gasket options
316L SS / Nickel 200 / Copper / Aglated
Cleanliness
ISO Class 4 cleanroom packaged (UHP)
Process Specifications
| Requirement | GP | HP | UHP |
|---|---|---|---|
| Material / Spec | 316L / A479 | 316L / SEMI F20 316L VAR / SEMI F20 | 316L / SEMI F20 316L VAR / SEMI F20 316L VIM-VAR / SEMI F20 |
| Surface roughness | Ra 15 in (0.4 μm) | Ra 10 in (0.25 μm) | Ra 5 in (0.13 μm) |
| Polishing | Mechanical | Electropolished | Electropolished |
| Packaging | Single bag | Double bag | Double bag |
| Cleanroom class | ISO 6 / Class 1000 | ISO 4 / Class 10 |
Configure & Order
1 - Series
2 - Component Type
3 - Size
4 - End Connection
5 - Gasket Material
6 - Process Grade
Part Number
FTG-06 / G Series —Metal Face-Seal / GU —Straight union body / MR2 —1/8 / TB —Tube butt weld / 316L —316L SS / GP
Overview

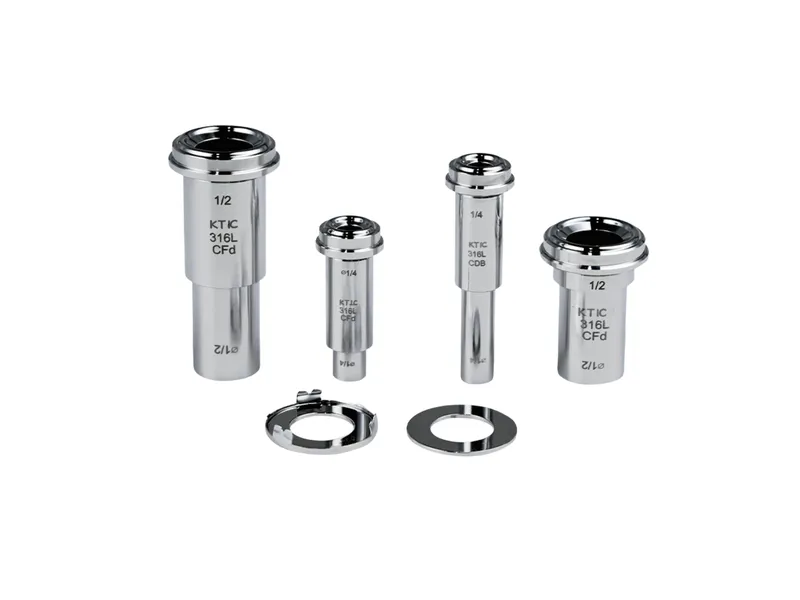

The G series metal face-seal fittings use a replaceable metal gasket compressed between two polished gland faces to create a high-integrity, helium-leak-tight seal. 316L stainless steel with electropolished surface finish options from Ra 0.13 μm (UHP) to 0.4 μm (GP). Suitable for ultra-high-purity gas distribution in semiconductor fabs. Each fitting is permanently marked with traceability information.
Dimensional Drawings
Drawing Pending
Manual Dimensions
| Component | MR Size | L (mm) | A (mm) | C (mm) | F (mm) |
|---|---|---|---|---|---|
| GU-MR4 | Straight union 1/4 | 39.4 (1.55) | 4.6 (0.18) | 15.9 (5/8) | |
| GU-MR8 | Straight union 1/2 | 46.7 (1.84) | 10.2 (0.40) | 23.8 (15/16) | |
| GE-MR4 | Elbow 1/4 | 27.2 (1.07) | 4.6 (0.18) | 12.7 (1/2) | |
| GE-MR8 | Elbow 1/2 | 36.8 (1.45) | 10.2 (0.40) | 20.6 (13/16) | |
| GT-MR4 | Tee 1/4 | 27.2 (1.07) | 4.6 (0.18) | 12.7 (1/2) | |
| GN-FMR4 | Female nut 1/4 | 20.6 (0.81) | 9.1 (0.36) | 19.1 (3/4) | |
| GMN-MR4 | Male nut 1/4 | 18.0 (0.71) | 9.1 (0.36) | 15.9 (5/8) | |
| GG-MR4 | Gasket 1/4 | 11.9 (0.47) | 5.6 (0.22) |
Dimensions are for reference only and subject to change without notice.
